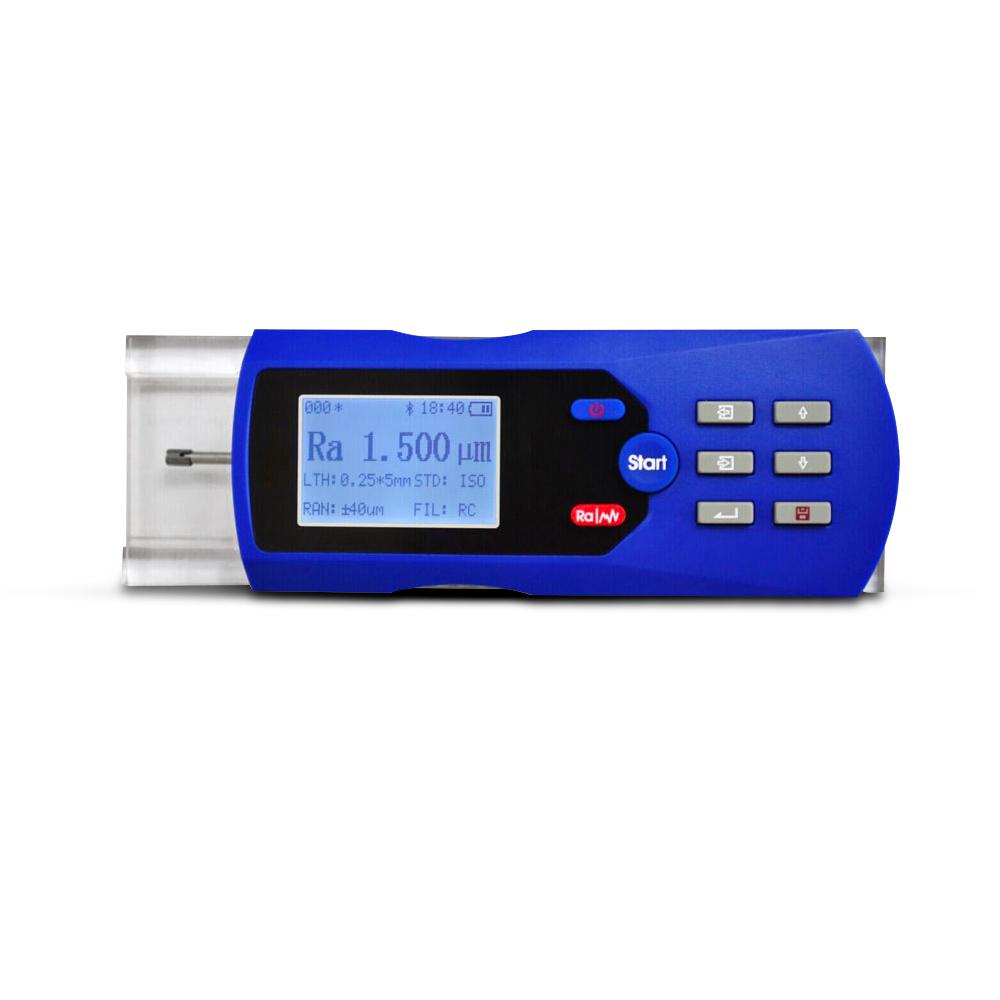

Accud AC-SR200 Roughness Tester

Accud AC-SR200 Roughness Tester

The Accud Roughness Tester offers 13 different roughness parameters, roughness values, profile and curve display on one compact and light device. The Accud Roughness Tester can hold a maximum of 100 results in the device memory, a mini sd slot to record data for later and the ability to print results directly with bluetooth connectivity.

Features:

• Mini SD card slot
• Automatic power off function
• Bluetooth connectivity: connect to a printer to directly print off test results
• Roughness values, profile and curve can be shown directly on the display screen

Specifications:

• Roughness Tester Range: 160µm
• Accuracy: +/- 10%
• Resolution: (RA) 0.001µm
• Probe:
  • Type: Inductive
  • Radius/Angle: 5μm/90°
  • Material: Diamond
• Measuring Force: 0.4mN
• Measuring Unit: μm/μin
• Parameters: RA, Rz, Ry, Rq, Rp, Rm< Rt, R3z, Rmax, Sk, Sm & tp
• Dimensions (L x W x H): 140mm x 52mm x 48mm
• Weight: 0.44kg
