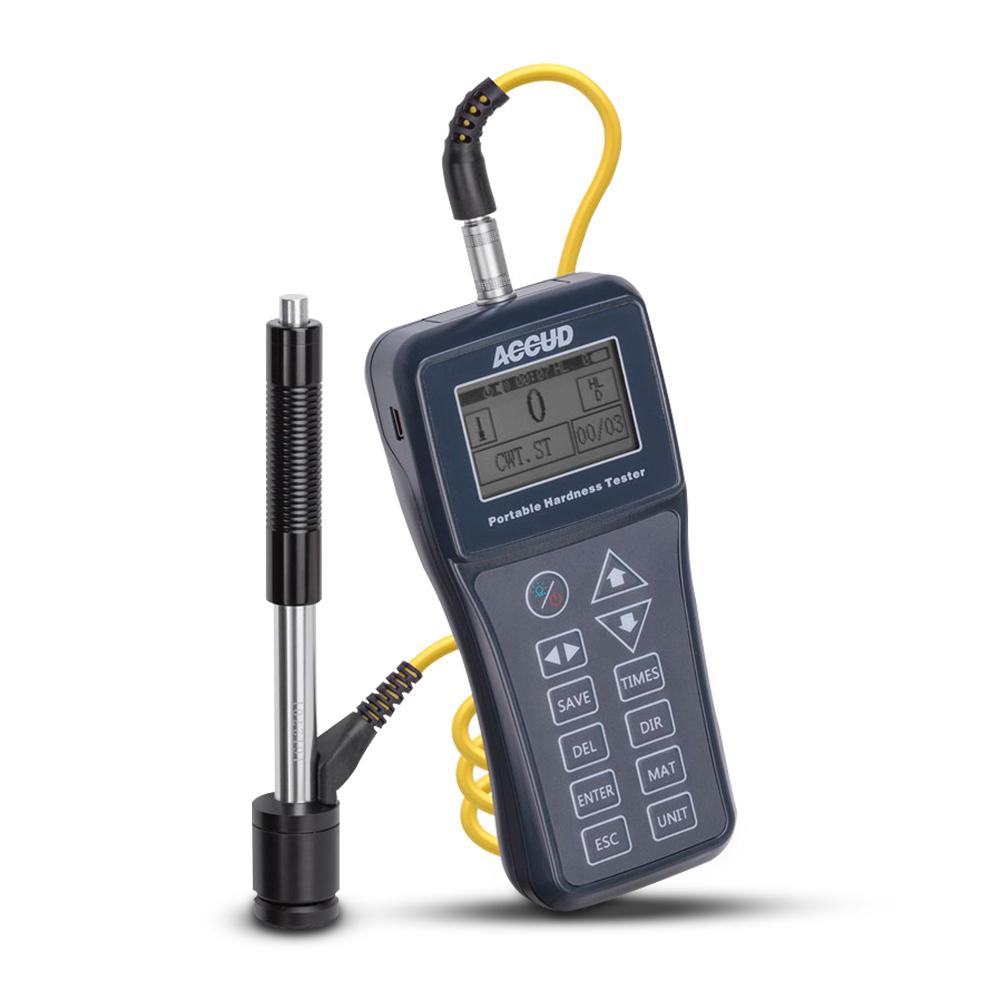

Accud AC-HL400 Portable Hardness Tester

Accud AC-HL400 Portable Hardness Tester

The Accud Portable Hardness Tester offers a light weight and compact option for hardness testing in the field.

Includes:

• 1 x Test Block
• 1 x Small Support Ring
• 1 x Brush
• 1 x USB Cable

Features:

• Automatic power off function
• Based on HL scale and supports other hardness test scales and tensile strength in MPa
• Has an average value calculation function

Specifications:

• Resolution: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa
• Accuracy: +/-8HLD/0.8HRC(HLD=800)
• Min. workpiece weight:
  • >5kg (directly)
  • >2kg (on solid support)
  • >0.1kg (coupled to solid support)
• Min. workpiece thickness: >5 mm
• Min. workpiece diameter: >22mm
• Max. workpiece surface roughness: Ra<1.6µm
• Power Supply: 3 x AAA Battery
• Regulatory Standard: ATSM A956-02
• Dimensions (L x W x H): 150mm x 67mm x 29mm
• Weight: 4.64kg
