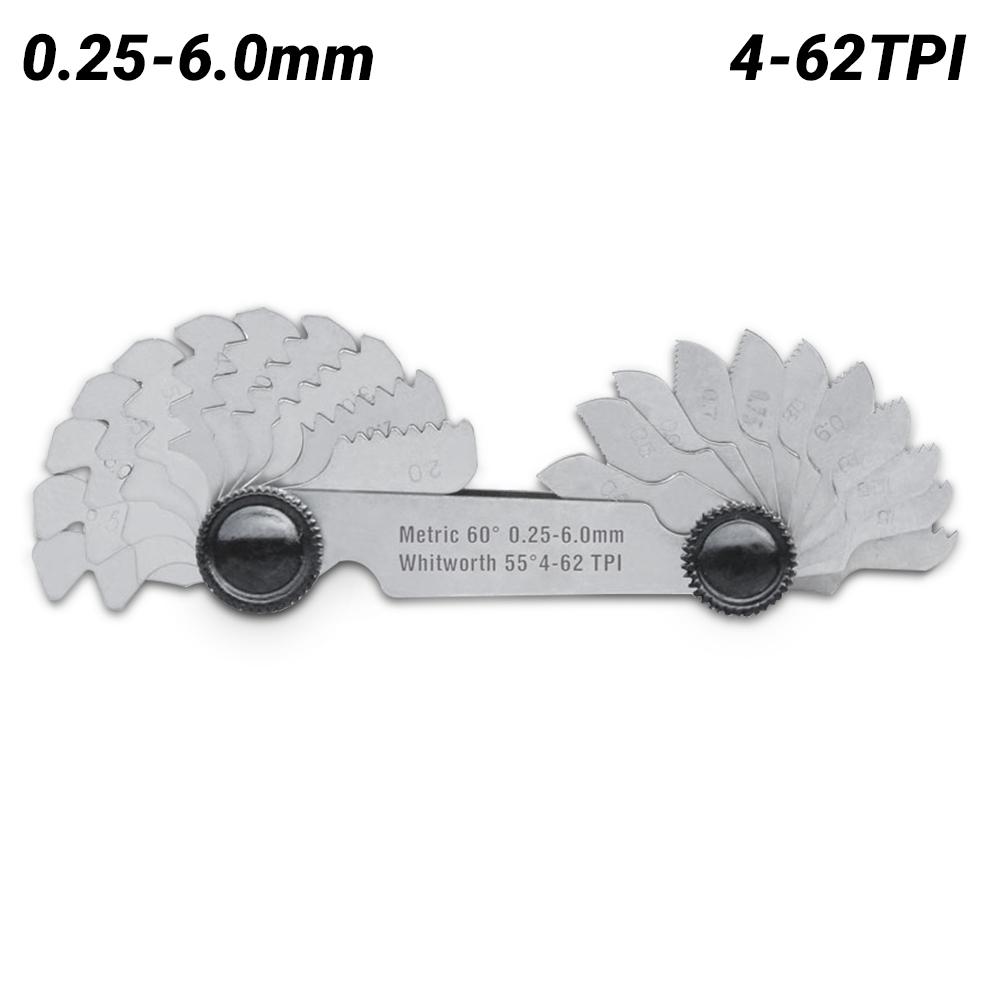

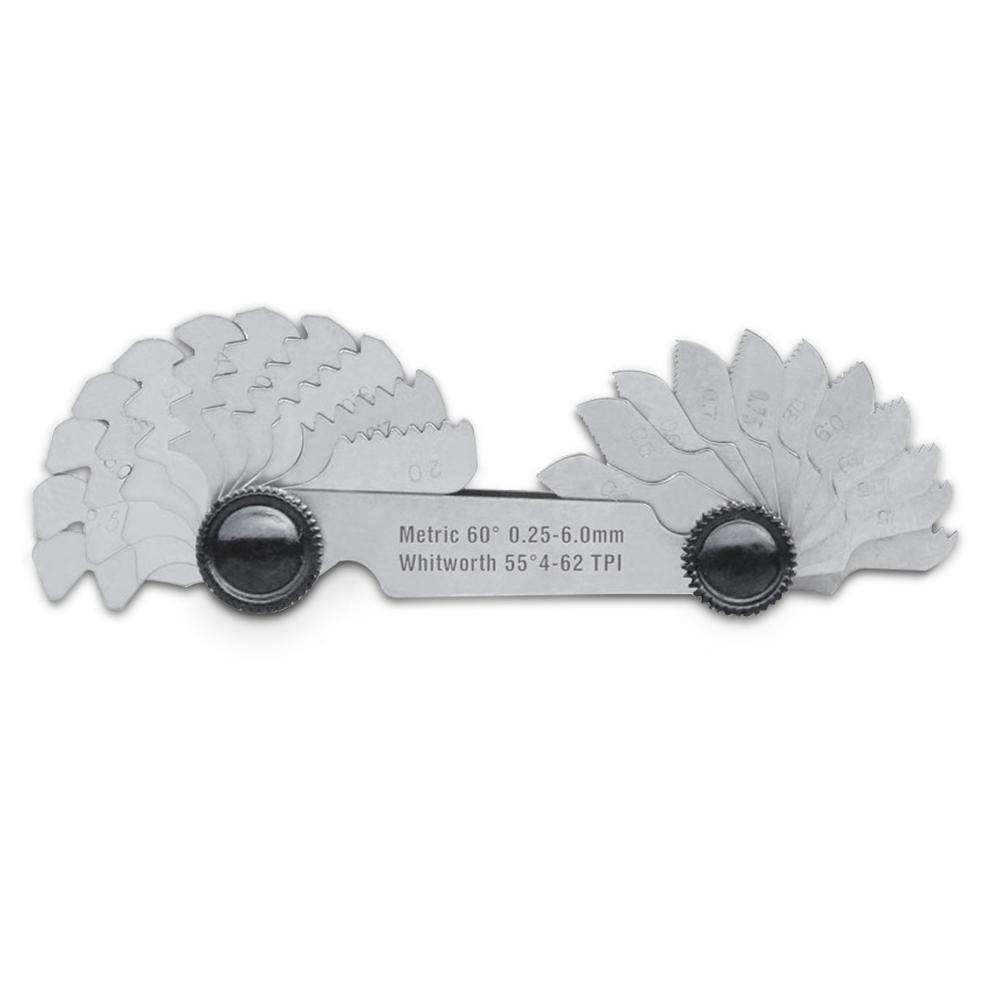

Accud AC-925-062-52 Combination 60º Metric & 55º Whitworth Thread Gauge

Accud AC-925-062-52 Combination 60º Metric & 55º Whitworth Thread Gauge

The Accud Combination 60º Metric & 55º Whitworth Thread Gauge makes determining thread pitch of screws quickly and easy. Simply insert the teeth inbetween the recesses of the screw to determine the thread pitch.

Features:

• Light and compact design
• 52 different sized gauges held securely together within the handle.

Specifications:

• Metric 60º Graduations (mm): 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6
• Whitworth 55º Graduations (TPI): 4, 4-1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60, 62
• Number Of Gauges: 52
• Range:
  • 0.25-6.0mm
  • 4-62TPI
• Accuracy: +/- 0.07mm
• Weight: 0.08kg
