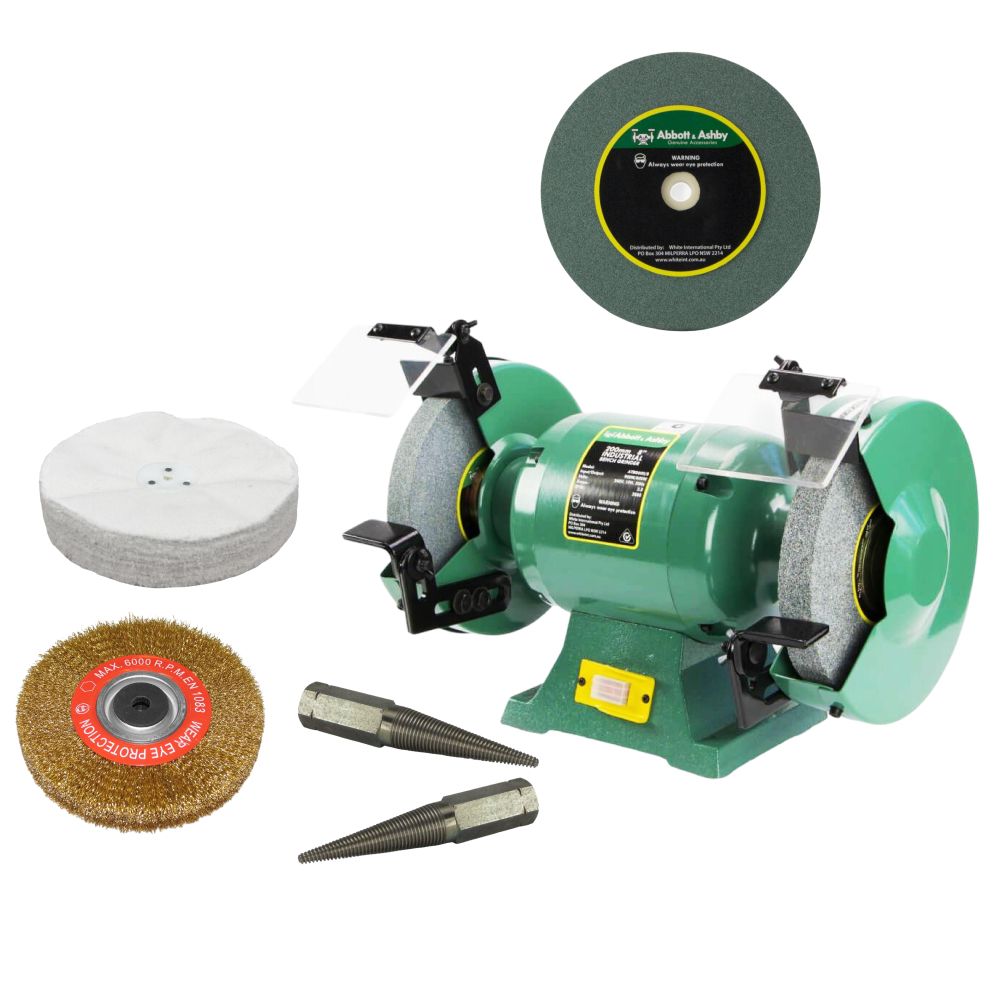

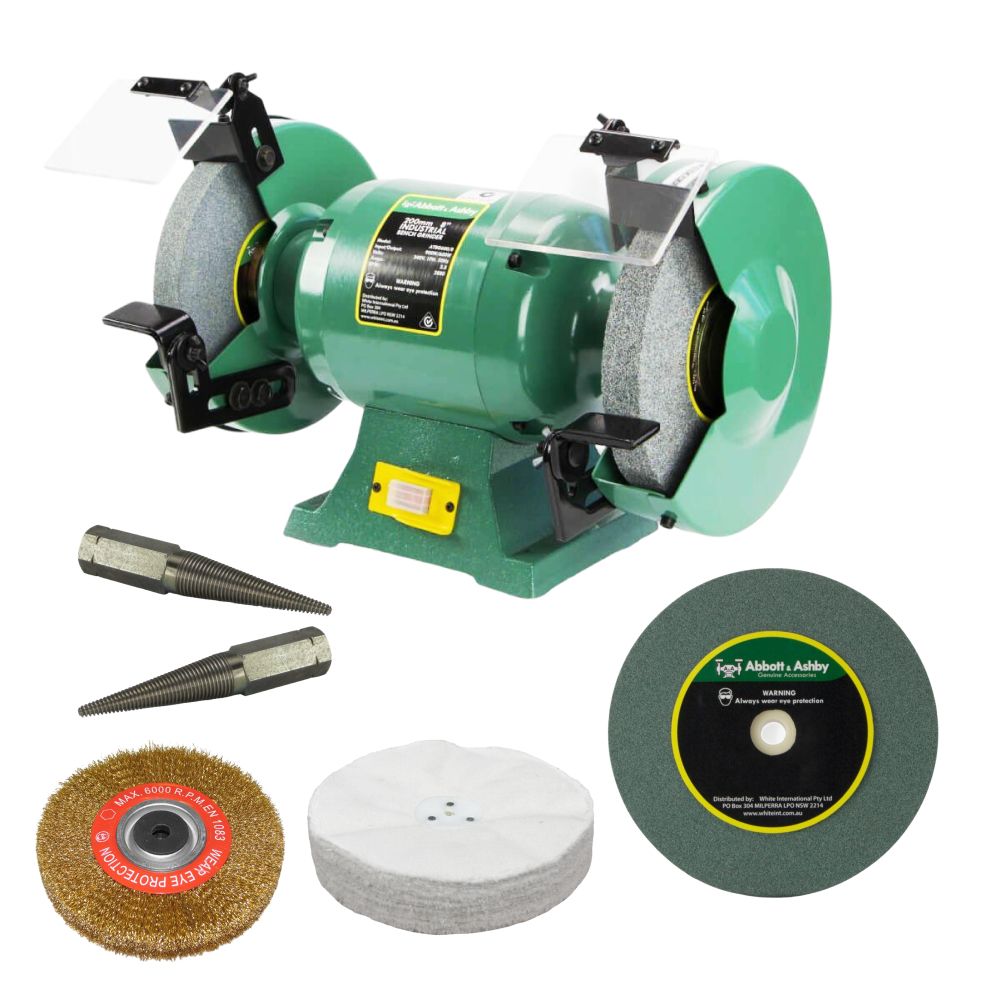

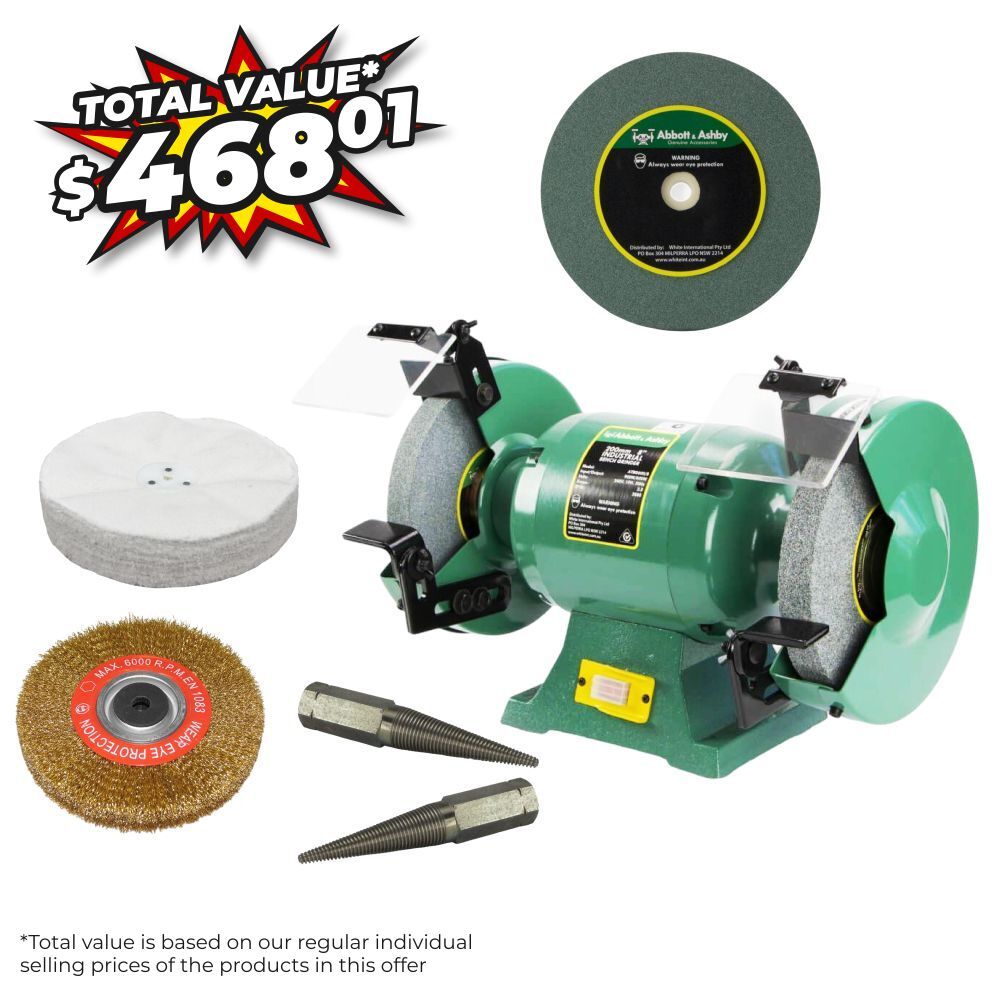

Abbott & Ashby ATBG600/8-KIT1 600W 200mm (8") Bench Grinder Industrial Workshop Station

Features:

• Industrial 200mm Bench Grinder
• Powerful Induction Motor Full 3/4 HP PLUS, the most powerful bench grinder in its class.
• 600 watt - 240 volt with standard 10 amp plug
• ‘Sealed for life’ ball bearings for prolonged life
• Vibration Absorption Pads on base for smoother running and a better finish
• 25mm wide grinding wheels with 36 and 60 grit wheels standard for fast removal of material
• 50mm wide wheel guards to accept the use of wire wheels without fouling for greater user protection
• Cast Iron Body and Base make the grinder strong and hardwearing for years of performance
• Capacitor Start-Stop Motor for maximum performance
• Fully adjustable tool rests for ease of use in different applications

Specifications:

• Amps: 3.8A
• Volts: 240V
• Wheels: 200mm / 8"
• Watts:600W

Truly Industrial Quality, the closeness and quantity of the wire strands ensures longer, more effective working life. All purpose brushes supplied with multi-fitting bushes13, 16, 20, 22, 26, 30, 36 and 50mm

Features:

• Abbott & Ashby Wire Wheels are made of crimped brass coated carbon steel wire.
• Bore Diameter: 1 1/4” with Multi-bore (13, 16mm) - fits most 6” & 8” bench grinding machines
• Carbon Wire: 0.014 - For general purpose cleaning and deburring.
• Crimped Wire Wheel - Offers high flexibility for applications on irregular surfaces. Excellent for light brushing and surface preparation.
• Support consistent, uniform brushing since the tool’s cutting action is at the filament tips.

Specifications:

• Diameter: 200mm / 8"
• Face Diameter: 25mm
• Type: Crimped Wire Grinding Wheel
• Bore: 16mm

Many applications call for a more refined, brighter finish, from a rough surface to a perfect, mirror-like one. To that effect Abbott & Ashby’s range of cloth mops and cutting compounds allow the tradesman to achieve the desired finish in a multitude of materials, from steel to copper, from aluminium to brass and any other metals or alloys encountered in today’s workplace.

Features:

• Tapered centre bores, and may be mounted on the left or right of your grinder using a tapered buffing spindle.
• Loose leaf calico mop for high gloss polishing - avoid using different compounds on one mop, keep a separate mop for each compound and label it clearly.

Specifications:

• Diameter: 200mm / 8"
• Face Diameter: 25mm / 1"
• Type: Loose Leaf
• Bore: Tapered

Abbott & Ashby Spindles are used to attach mops and buffs. Suitable for 200mm bench grinders (Left & Ride Side) to allow the Abbot & Ashby range of buffing mops to be used for the desired finish.

Suitable For:

• 200mm Bench Grinder

Attachment Instructions:

• Remove outer wheel guard, grinding wheel and inner guard from the side of the machine that you want to fit the tapered spindle
• Screw on the tapered spindle noting that the internal thread of the spindle is counter bored to allow the spindle to cover the entire grinder shaft length
• Carefully screw the buff onto the tapered spindle with the thickest flange facing inwards.
• Screw on as far as buff will reasonably fit
• Turn on bench grinder and the buff will tighten further against the tapered spindle, to ensure your safety do not stand infront of the machine when you first turn it on and allow it to run for a minute before bringing your work to the machine.

Specifications:

• Type: Tapered
• Size: 16mm
• Position: Left & Right Side

Grinding wheel to suit 200mm Bench Grinders. 25mm wide, 200mm in diameter Silicone Carbide 80 grit. Ideal for more fine work where finish is important. Also suitable for tungsten carbide sharpening.

Features:

• Vitrified bonded Silicone Carbide wheel.
• For general purpose grinding of carbon and stainless steel and other alloys.
• Ideal for quick removal of material.
• Suitable for cast iron, non ferrous metals, non metallic materials such as glass, ceramics and rubber.
• Sturdy and reliable, this multi-bore Bench Grinding Wheel is ideal for sharpening a variety of cutting tools, giving you a fine grain surface finish.
• Multi-bore fits most 8” bench grinding machines.

Specifications:

• Type: Silicone Carbide
• Grit: 80
• Diameter: 200mm / 6"
• Face Diameter: 25mm / 1"
• Bore: 15.9mm
