3M 7100230834 (70007464897) 3M™ PROTECTA® Rebel™ Retrieval Self Retracting Lifeline Mounting Bracket, SRL Side and Tripod Base 3590498, 1 EA

3M 7100230834 (70007464897) 3M™ PROTECTA® Rebel™ Retrieval Self Retracting Lifeline Mounting Bracket, SRL Side and Tripod Base 3590498, 1 EA

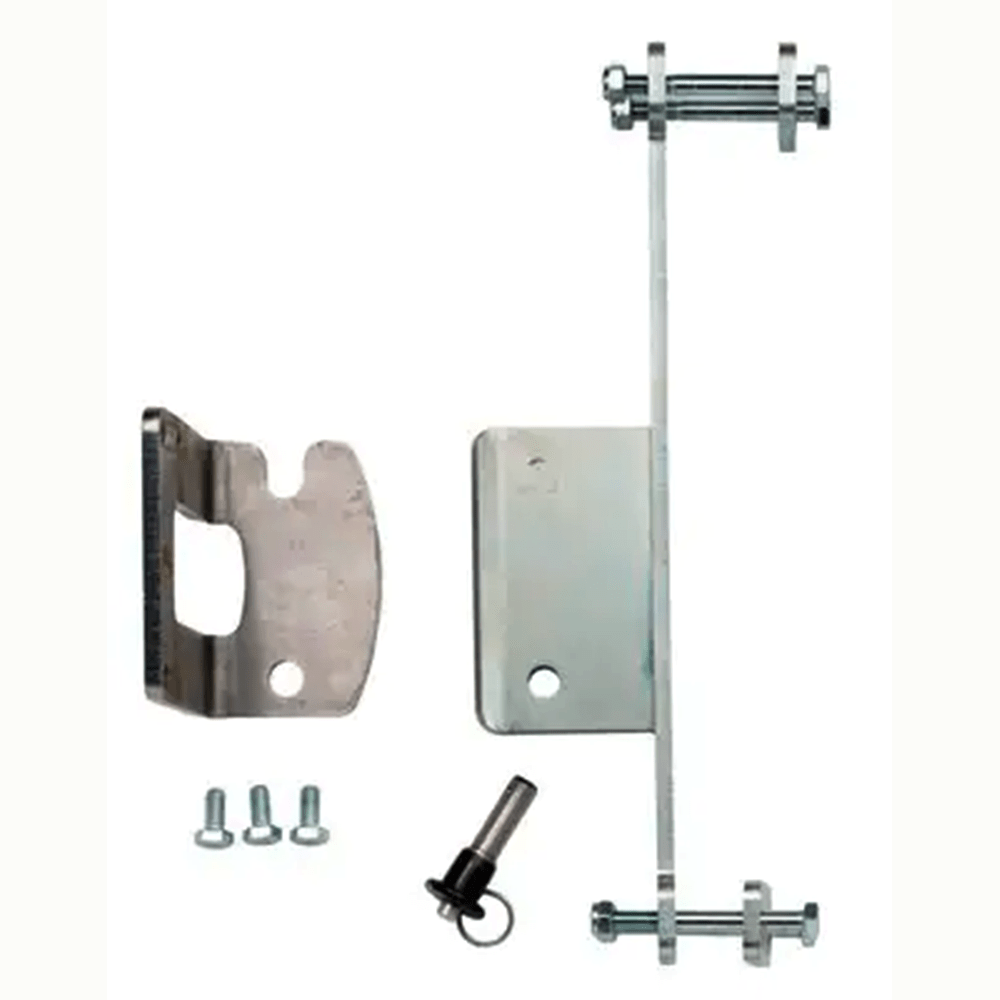

Confined space quick-connect mounting bracket (model 3590497) bolts to Rebel™ retrieval SRL, and tripod mounting base (model 8008005) attaches to tripod leg.

When it comes to confined space entry/rescue, it is essential that equipment operates perfectly and quickly. Lightweight, portable Protecta® aluminum tripods are ideal for confined space manhole entry and retrieval. They’re easily transported from one location to another and can be set up by one worker. Attach one or two mechanical devices such as a winch or 3 way self retracting lifeline and you’re ready to go. Our tripods are loaded with features such as locking legs, simple detent pin style adjustment, quick mount mechanical device bracket, safety chain to prevent movement and skid resistant tread plate soles on feet.



• Rebel™ retrieval self retracting lifeline quick-connect bracket (model 3590497)
• Tripod mounting base bracket for mechanical device
• Zinc plated steel construction
• Simple bolt-on attachment to SRL
• Fast and simple detent style mounting base attachment
• Compact design can be left in place indefinitely

Brand	PROTECTA®
Overall Height (Metric)	105.41 mm
Overall Length (Metric)	370.84 mm
Overall Width (Metric)	30.23 mm
Product Type	Retrieval Self Retracting Lifeline Mounting Bracket - SRL Side and Tripod Base
Weight (metric)	2 kg
