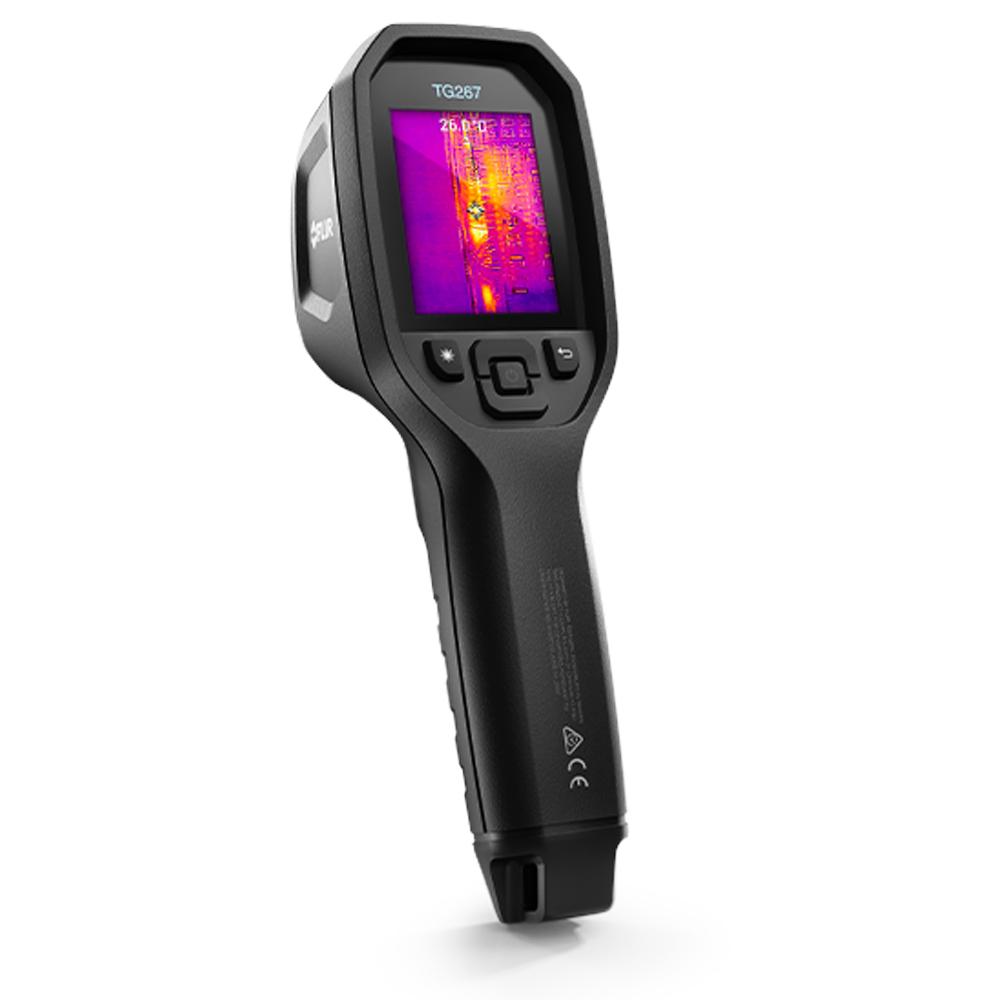

FLIR TG267 (87502-0202) 160px x 120px Thermal Camera

FLIR TG267 (87502-0202) 160px x 120px Thermal Camera

The FLIR TG267 takes you beyond the limitations of single-spot IR thermometers to both see and evaluate the hot and cold spots that can indicate serious issues. Ideal for commercial electrical, facility maintenance, and HVAC applications, this advanced thermal camera with a brilliant 2.4 inch screen reduces diagnostic time while simplifying repair and maintenance reporting. Patented FLIR MSX (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, providing added context to help you accurately target potential faults and troubleshoot repairs. Record images to monitor maintenance history and reassure your customer that problems have been resolved.

Features:

• Identify problems quickly - Measure a wide range of temperatures from -25°C to 380°C (-13°F to 716°F) with a true 160 × 120 IR pixel imager (19,200 pixels)
• Produce crisp thermal images - Display and record MSX-enhanced thermal images or visual images with temperature readings
• Work with confidence in rugged environments - Work safely and worry-free knowing that the IP54 enclosure can withstand a 2-meter drop and protect against dust and water

Specifications:

• IR Resolution: 160 × 120 pixels
• Display Resolution: 320 × 240 pixel, 2.4 in color LCD
• Battery Voltage: 3.7V
• Thermal Sensitivity/NETD: <70 mK
• Field of view (FOV): 57° × 44°
• Image Modes:
• MSX® (Multi Spectral Dynamic Imaging)
• Visual with temperature reading
• Storage Media: eMMC 4 GB
• Colour Palettes: Iron, Rainbow, White hot, Black hot, Arctic, Lava
• Detector Pitch: 12 µm
• Detector Type: Focal plane array (FPA), uncooled microbolometer
• Digital image enhancement: Yes
• Image Frequency: 8.7Hz
• Laser: Class 1 laser indicates the temperature measurement area; button-activated
• Minimum Focus Distance: 0.3 m (0.98 ft)
• Minimum Measurement Distance: 0.26 m (0.85 ft)
• Spectral Range: 7.5 - 14 µm
• Accuracy: ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 380°C (212°F to 716°F)
• Emissivity Correction: Yes: 4 preset levels with custom adjustment of 0.1–0.99
• Languages: Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish.
• Object Temperature Range: -25°C to 380°C (-13°F to 716°F)
• Battery Charge Life: 30 days minimum
• Battery Operating Time: 5 hours continuous scanning, 4.5 hours with laser on
• Battery Type: Rechargeable Li-ion Battery
• Charging Time: 4 hours to 90%, 6 hours to 100%
• EMC:
• EN 61000-6-3
• EN 61000-6-2
• FCC 47 CFR Part 15 Class B
• Encapsulation: IP 54 (IEC60529)
• Operating Temperature Range: -10°C to 45°C (14°F to 113°F)
• Storage Temperature Range: -30°C to 55°C (-22°F to 131°F)
• Safety: CE/CB/EN61010/UL
• Tripod Mounting: 1/4 in.-20 on handle bottom
• Dimensions (lxwxh): 210mm × 64mm × 81mm
• Weight: 0.394kg
