CPI CPI6650 Multifunction Installation Tester

CPI CPI6650 Multifunction Installation Tester

The CPI Multifunction installation Tester features a 3.5" TFT colour LCD display, providing insulation resistance, earth resistance, loop impedance, voltage, RCD, PFG and PSC testing. It is designed to ensure the safety of electrical installations in domestic, commercial and industrial applications. The Multifunction Installation Tester can ensure fixed wiring is sae and correctly installed. It's fast sampling and dual display, clear symbols and exceptionally wide viewing angle provides easy and safe readings.

Includes:

• 3 x Test Leads
• 3 x Crocodile Clips
• 1 x Remote Control Probe
• 1 x Mains Measuring Cable
• 1 x Carrying Case
• 8 x 1.5V AA Rechargeable batteries
• 1 x USB Cable & Software CD
• 1 x User Manual
• 1 x Soft Carrying Neck Belt

Features:

• 3.5" TFT COlour LCD display with 320x250 pixels
• Fast high current loop test

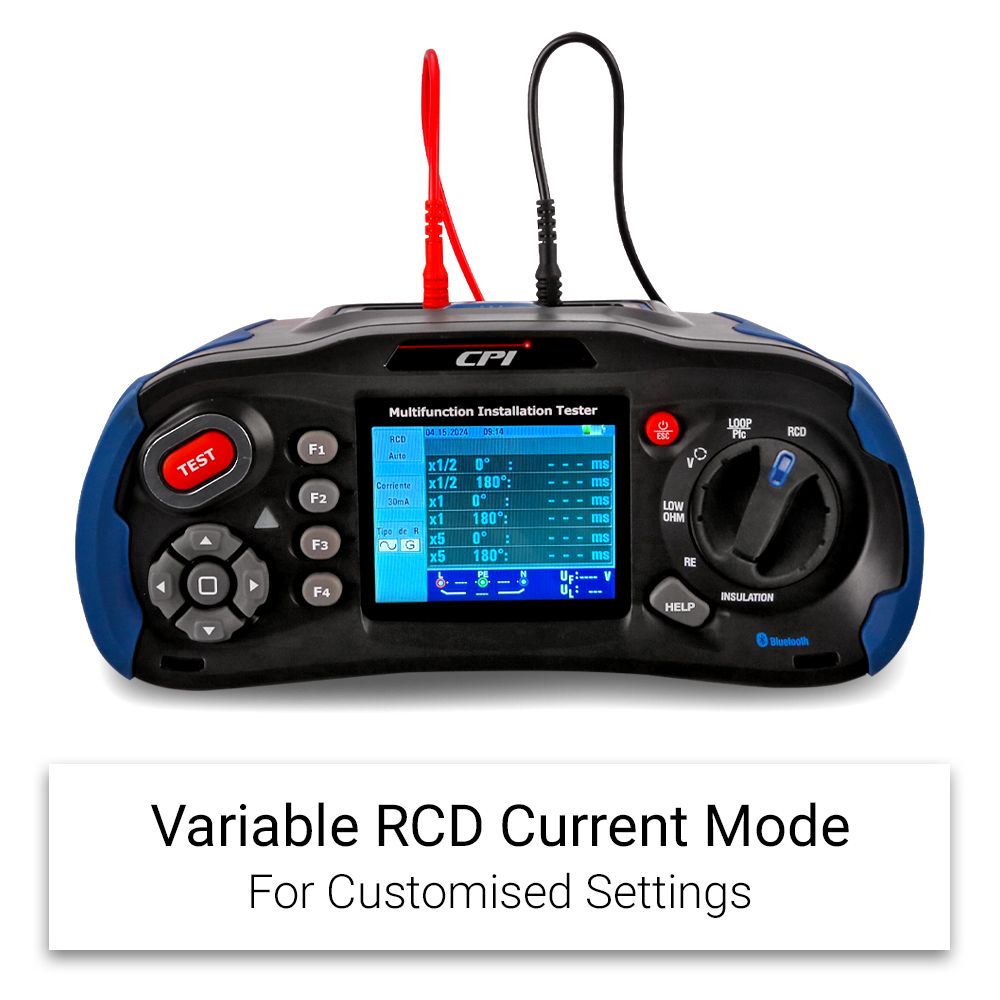

• Variable RCD Current mode for customised settings
• PASS/FAIL indication for RCD Tests
• Select voltage measurement between L-N, L-PE & N-PE
• Support SD Memory, USB & Bluetooth interface
• Safe earth volt touchpad detects raised earth voltages <50V, indicating potential dangerous situations
• Slim probes designed with test button

Specifications:

• LCD Screen Type: 3.5" TFT
• Pixels: 320 x 240
• Average Battery Life: 15 hours
• Operating Temperature: 0º to 45ºC : 95% / 10ºC: Non-Condensing
• Relative Humidity: 75% @30-40ºC
• Storing Temperature: -10ºC to 60ºC
• Operating Altitude: 2000m
• CAT Rating: CAT III 600V
• Protection Rating: IP65
• Insulation:
  • Terminal Voltage: 125V (0% ~ +10)
    • Range: 0.125~4000MΩ
    • Max Resolution: 0.001MΩ
    • Accuracy: ±(2%+10)
    • Test Current: 1mA@load 125kΩ
    • Short Circuit Current: ≤1mA
  • Terminal Voltage: 250V (0% ~ +10)
    • • Range: 0.250~4000MΩ
      • Max Resolution: 0.001MΩ
      • Accuracy: ±(2%+10)
      • Test Current: 1mA@load 250kΩ
      • Short Circuit Current: ≤1mA
  • Terminal Voltage: 500V (0% ~ +10)
    • • Range: 0.500~4000MΩ
      • Max Resolution: 0.001MΩ
      • Accuracy: ±(2%+10)
      • Test Current: 1mA@load 500kΩ
      • Short Circuit Current: ≤1mA
  • Terminal Voltage: 1000V (0% ~ +10)
    • • • Range: 1.000~4000MΩ
        • Max Resolution: 0.001MΩ
        • Accuracy: ±(3%+10)
        • Test Current: 1mA@load 250kΩ
        • Short Circuit Current: ≤1mA
• Low OHM:
  • Range: 4.000Ω
    • Resolution: 0.001Ω
    • Accuracy: ±(1.5%+30)
    • Max. Open Circuit Voltage: 5.8V
    • Overlod Protection: 250Vrms
  • Range: 40.00Ω
    • Resolution: 0.01Ω
    • Accuracy: ±(1.5%+3)
    • Max. Open Circuit Voltage: 5.8V
    • Overlod Protection: 250Vrms
  • Range: 400.0Ω
    • Resolution: 0.1Ω
    • Accuracy: ±(1.5%+3)
    • Max. Open Circuit Voltage: 5.8V
    • Overlod Protection: 250Vrms
• Continuity Beeper:
  • Range: Continuity
    • Resolution: 0.01Ω
    • Operation Resistance: Resistance ±35Ω
    • Max Open Circuit Voltage: 5.0V ±1VDC
    • Overload Protection: 250Vrms
  • Range: Short Circuit Current:
    • Operation Resitance: ≥200mA
• Loop Resitnace:
  • L-PE (Hi-Amp) Range of the voltage used: 195V a.c.~260V a.c. (50, 60Hz)
    • Range: 0.00~999Ω
    • Max Resolution: 0.01Ω
    • Accuracy: ±(4% of reading + 6 digits)
  • L-PE (No Trip): Measuring Current: 15mA / Range of the Voltage Used: 195V a.c.~260V a.c.(50, 60Hz)
    • Range: 0.00~999Ω
    • Max Resolution: 0.01Ω
    • Accuracy: ±(5% of reading + 6 digits)
  • L-N: Measuring Current: 2.0A / Range of the Voltage Used: 195V a.c.~260V a.c. (50, 60Hz)
    • Range: 0.00~999Ω
    • Max Resolution: 0.01Ω
    • Accuracy: ±(4% of reading + 6 digits)
• RCD Testing:
  • Test Current: x1/2, x1, x2, x6
  • Accuracy: 1.5%~ - 9%
• Voltage & Frequency:
  • Measurement Range: 80-500V/(45-400Hz)
  • Resolution: 1V
  • Accuracy: ±(2% of reading+2 digits)
• Dimensions (L x W x H): 242mm x 105mm x 145mm
• Weight: 1.56kg

Warranty:

• 12 Months Covered by CPI
